The Midea DLCSRBH18AAK / DLFSHCH18XAK 1.5-ton Mini-Split System delivers exceptional heating and cooling performance in a compact, whisper-quiet design. Ideal for single-zone residential or light commercial applications, this system provides energy-efficient comfort year-round, even in extreme conditions as low as -22°F.
With an impressive 21.5 SEER2 and 11.3 HSPF2-4, this 18,000 BTU system combines variable-speed inverter technology with Midea’s advanced compressor design to ensure precise temperature control, low operating costs, and long-term reliability.
Includes:
(1) Midea DLCSRBH18AAK 1.5 Ton Mini-Split Heat Pump

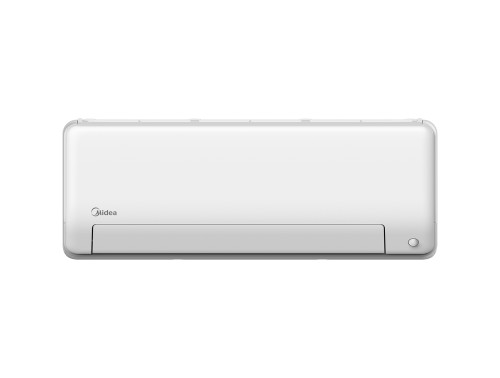

(1) Midea DLFSHCH18XAK Premier Wall Mount Indoor Unit
Key Features
-
Energy-Efficient Comfort: Up to 25.5 SEER2 and 11.3 HSPF2 for outstanding energy savings.
-
All-Season Performance: Operates effectively from -22°F to 122°F, providing dependable heating and cooling in any climate.
-
Quiet Operation: Indoor sound levels as low as 24 dBA and outdoor levels of just 58 dBA.
-
Powerful Airflow: Delivers up to 635 CFM indoors and 1,765 CFM outdoors for fast, even distribution.
-
Compact Design: Wall-mounted indoor unit measures only 38 in W × 9-3/8 in D × 12-5/8 in H.
-
Flexible Installation: Supports piping lengths up to 98.4 ft and height differences of 65.6 ft for versatile placement.
-
Environmentally Friendly Refrigerant: Uses R-410A with factory charge and flared connections for easy servicing.
-
Smart Controls Ready: Compatible with modern thermostats and smart home integrations (sold separately).
Specifications
Outdoor Unit
-
Capacity: 18,000 BTU Cooling / Heating
-
Power Supply: 208/230V, 1Ph, 60Hz, 20A
-
Refrigerant: R410A
-
Outdoor Noise Level: 58 dBA
-
Dimensions: 35″ W × 13 1/2″ D × 26 1/2″ H
Indoor Unit
-
Cooling Capacity (Rated): 18,000 BTU/hr
-
Heating Capacity (Min/Max): 15,100 – 19,500 BTU/hr
-
SEER2 / EER2: 21.5 / 12.5
-
HSPF2-4: 11.3 | COP: 3.1
-
Power Supply: 208/230V, 1Ph, 60Hz, 20A
-
Indoor Airflow (H/M/L): 635 / 524 / 376 CFM
-
Indoor Noise Level (H/M/L): 24.0 / 42.0 / 46.0 dBA
-
Max Piping Length: 898.4 ft | Height Difference: 65.6 ft
