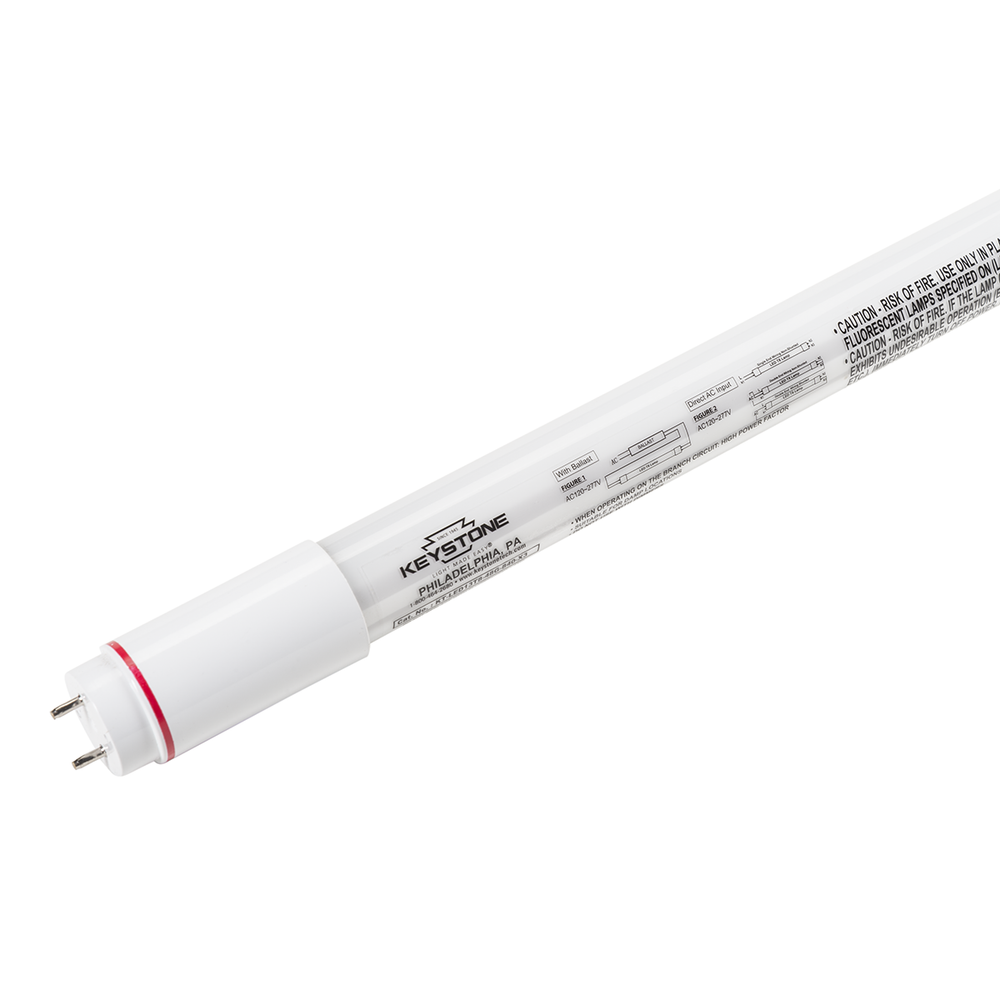

The Keystone KT-LED13T8-48G-8CSJ-X3 is a high-efficiency 4-foot T8 LED Lamp designed for seamless replacement of conventional fluorescent tubes. It features advanced Color Select technology, allowing users to choose from five CCT settings (3000K, 3500K, 4000K, 5000K, 6500K) to suit any environment. Compatible with both ballast-driven and direct line voltage wiring, this lamp offers exceptional flexibility and performance for retrofits or new installations.
Key Features:
- Selectable CCT: Easily adjust between 3000K, 3500K, 4000K, 5000K, and 6500K using an integrated dip switch.
- Dual Install Compatibility: Works with most instant- and program-start ballasts or directly wired (single- or double-ended).
- Energy Efficient: Operates at 13W and delivers up to 2050 lumens with efficacy up to 157 lm/W.
- High CRI: Delivers accurate color rendering with a CRI >80.
- Long Life: Rated for 50,000+ hours, significantly reducing maintenance costs.
- Frosted Glass Lens: Eliminates pixelation and provides smooth light diffusion.
- Safe and Eco-Friendly: Contains no mercury and complies with FCC Part 15, Class B.
- Dimming Capability: Dimmable in Type B mode with appropriate accessories.
- NSF Certified: Suitable for splash zone applications in food areas.
- Wide Beam Angle: 240° beam angle for broad, uniform light distribution.
- Operating Range: Performs reliably in temperatures from -4°F to 113°F.
Specifications:
- Lamp Type: T8 LED
- Wattage: 13W
- Voltage: 120–277V
- Base Type: G13 (Medium Bi-Pin)
- Lumen Output: Up to 2050 lm (depending on CCT)
- Efficacy: Up to 157 lm/W
- Color Rendering Index (CRI): >80
- Beam Angle: 240°
- Operating Temp: -4°F to 113°F
- Warranty: 5 Years
- DLC Listed: Yes
Ideal for commercial, industrial, retail, and institutional applications, this T8 LED lamp offers versatility, high output, and reliable performance in a variety of lighting setups.
Click here to download the Product Data Sheet
10 Year Limited Manufacturer Warranty Click here for more information on Keystone's product warranty.
