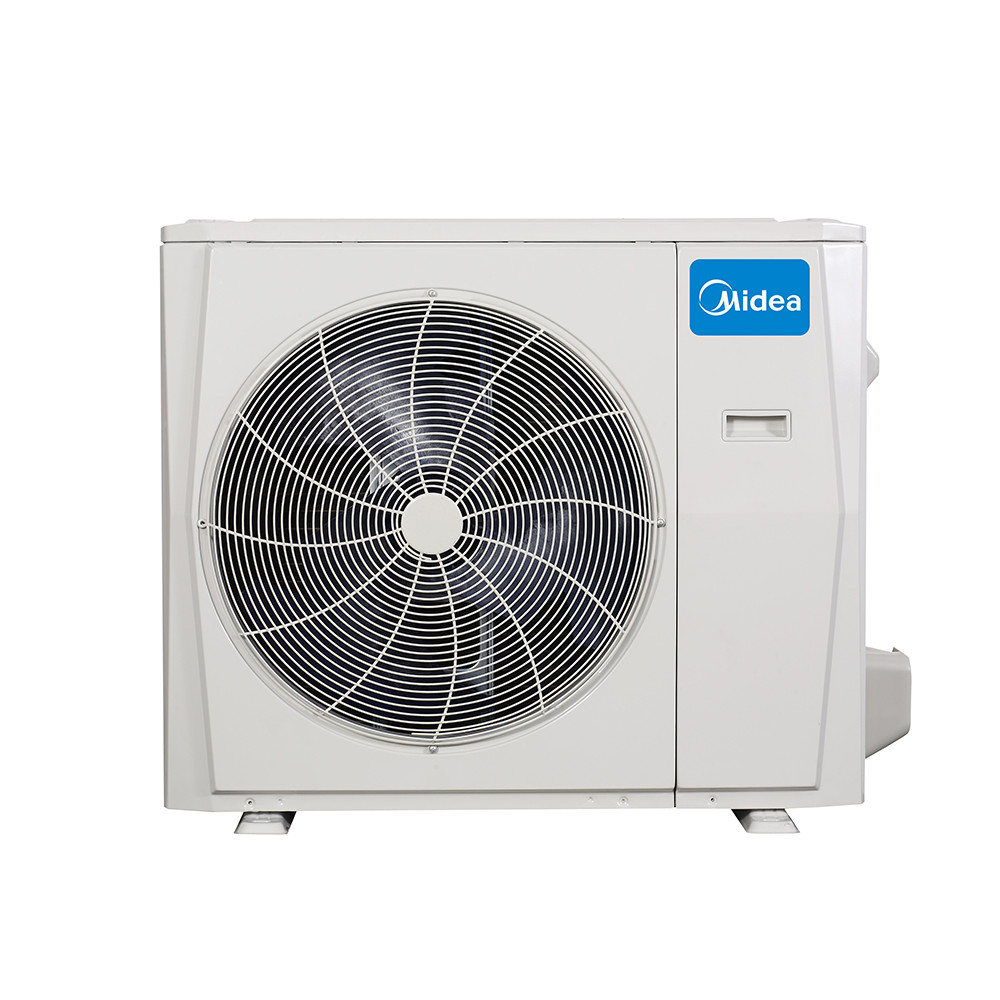

The Midea DLCLRCH36AAK Outdoor Unit is a 36,000 BTU inverter-driven heat pump built for reliable, year-round performance in both residential and light commercial applications. Featuring a rotary compressor and R-410A refrigerant, it operates efficiently across extreme climates, delivering cooling in conditions as low as -22°F (-30°C) and heating down to the same low limit. Its ECM fan motor and included basepan and crankcase heaters ensure smooth startup and consistent airflow, even in harsh winter environments.
Designed for durability, the DLCLRCH36AAK uses anti-corrosive fin coatings and offers quiet performance at approximately 63 dB(A). With airflow output around 2,130 CFM and long piping support of up to 213 feet, it provides installation flexibility for challenging layouts. Serviceability is straightforward thanks to easy-access panels, while its slim design allows space-saving outdoor placement. Engineered for energy savings and long-term reliability, this outdoor unit is a dependable solution for year-round comfort.
Features
- 36,000 BTU cooling and heating capacity
- Rotary inverter compressor with variable speed
- Uses R-410A refrigerant
- Heating & cooling operation down to -22°F (-30°C)
- ECM outdoor fan motor for efficient, quieter operation
- Built-in basepan heater and crankcase heater
- Anti-corrosive fin coating for durability
- Airflow output up to ~2,130 CFM
- Quiet operation at approximately 63 dB(A)
- Easy service access from top and side panels
- Flexible installation with long line lengths
Specifications
- Cooling Capacity: 36,000 BTU/hr
- Voltage: 208/230V, 1Ph, 60Hz
- Operating Temperature Range: Cooling -22°F to 130°F; Heating -22°F to 86°F
- Maximum Piping Length: 213 ft (65 m)
- Maximum Vertical Lift: 98 ft (30 m)
- Liquid Line Connection: 3/8 in (9.52 mm)
- Suction Line Connection: 5/8 in (16 mm)
- Factory Refrigerant Charge: ~6.72 lbs (3.05 kg)
- Dimensions: 37.24" W × 31.89" H × 16.14" D (946 × 810 × 410 mm)
- Net Weight: 155.4 lbs (70.5 kg)
