Experience year-round comfort and efficiency with this complete Midea 3-ton multi-zone ductless system. The package includes one 3-ton (36,000 BTU) Hyper-Heat outdoor unit paired with three 1-ton (12,000 BTU) Premier wall-mount indoor units — a perfect solution for zoned comfort in homes, offices, or light-commercial spaces. Each indoor unit operates independently, allowing you to tailor temperature settings for different rooms while reducing energy consumption.
Includes:
- (1) Midea DLCMHBH36DAK – Multi-Zone Hyper Heat Outdoor Unit (3 Ton)
- (3) Midea DLFSHCH12XAK – Premier Wall-Mount Indoor Units (1 Ton each)
This combination offers powerful heating and cooling performance, advanced inverter technology, whisper-quiet operation, and flexible installation options for maximum comfort and control.
Key Features
-
Multi-Zone Efficiency: One 3-ton outdoor unit supports up to four indoor zones for flexible comfort distribution.
-
Hyper-Heat Technology: Delivers reliable heating performance in outdoor temperatures as low as –22 °F.
-
High Energy Efficiency: Outdoor unit rated up to SEER2 22.2 and HSPF2-4 10.3 for lower operating costs.
-
Quiet Operation: Indoor sound levels as low as 23.5 dBA for peaceful comfort in any room.
-
Smart Zoning Control: Each indoor unit includes its own remote control, allowing precise temperature management per zone.
-
Sleek Wall-Mount Design: Space-saving, modern look ideal for bedrooms, offices, or additions.
-
Long Line Set Capability: Total refrigerant piping up to 262 ft and 115 ft per indoor unit for flexible installations.
-
Eco-Friendly Operation: Uses R410A refrigerant and variable-speed inverter technology for reduced environmental impact.
-
Reliable Warranty: Backed by Midea’s 7-year compressor and 5-year parts limited warranty.
Specifications

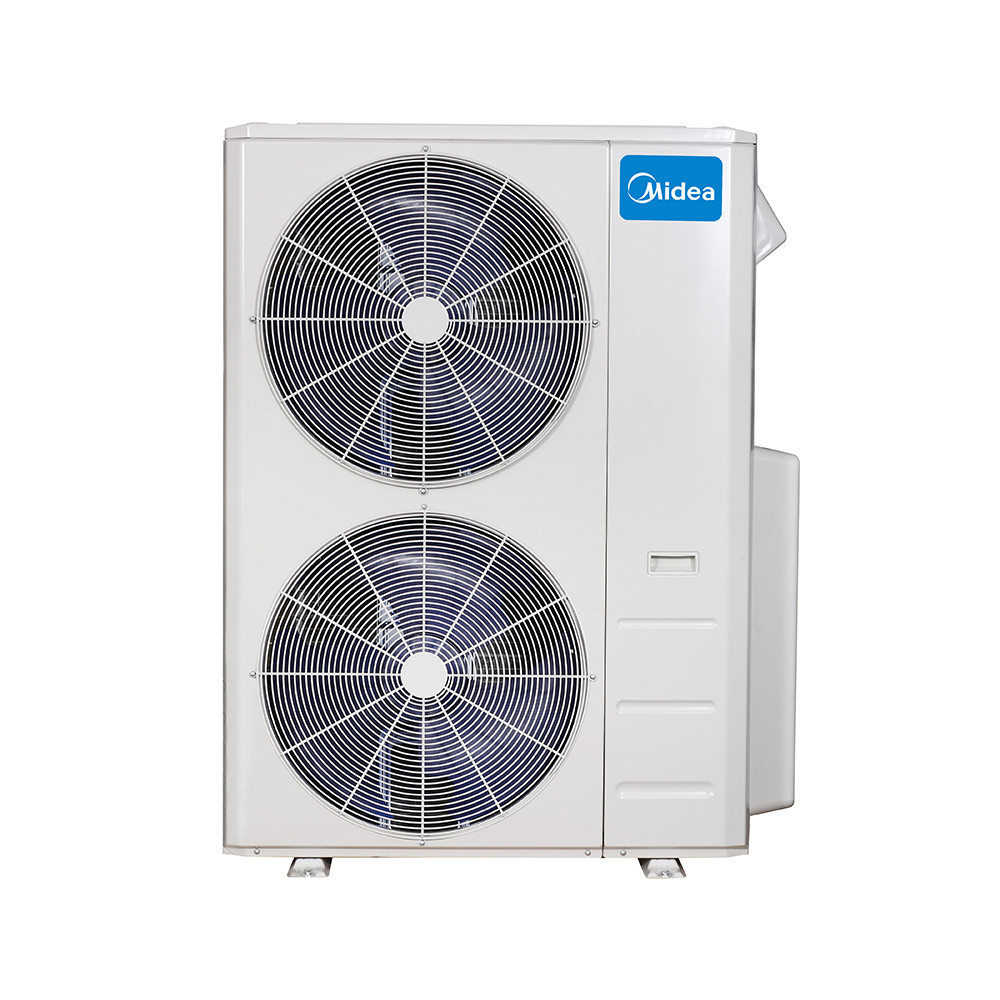

Outdoor Unit – Midea DLCMHBH36DAK
-
Cooling Capacity: 36,000 BTU/hr (rated)
-
Heating Capacity: 37,000 BTU/hr (rated)
-
Operating Range: Heating down to –22 °F outdoor ambient
-
Efficiency Ratings: SEER2 22.2 | EER2 13.6 | HSPF2-4 10.3 | COP ≈ 3.9
-
Power Supply: 208/230 V | 1 Phase | 60 Hz
-
Noise Level: ≈ 63 dBA (outdoor)
-
Piping Length: Total 262 ft | Per Zone 115 ft
-
Height Difference: 49 ft maximum
-
Refrigerant Type: R410A
-
Warranty: 7 Years Compressor / 5 Years Parts
Click here to download the Product Submittal

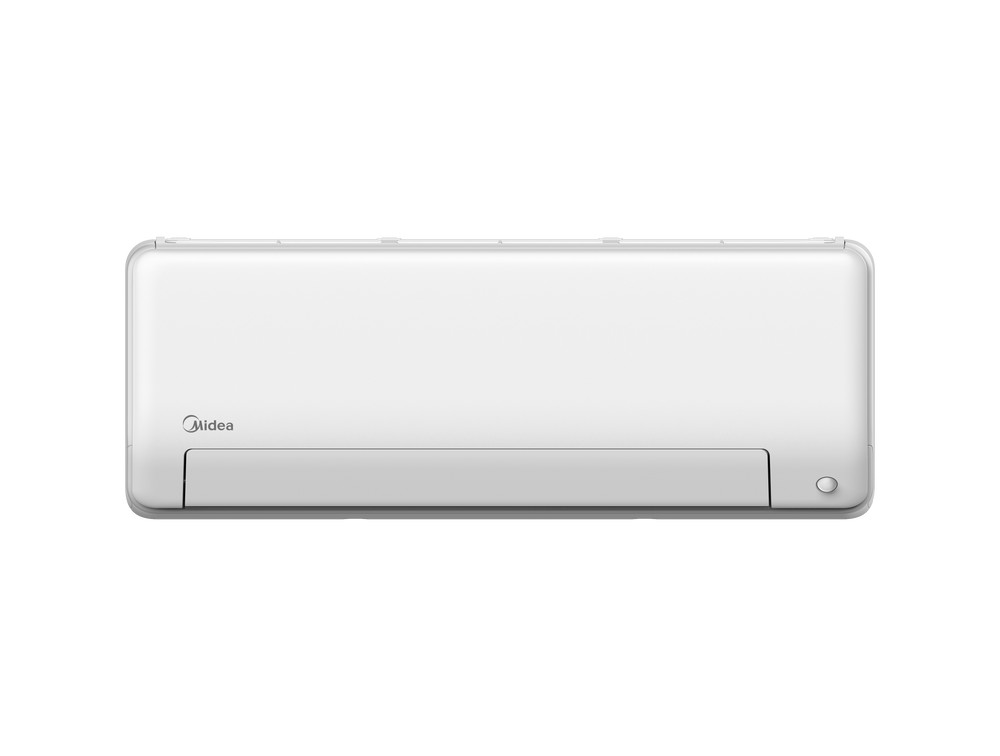

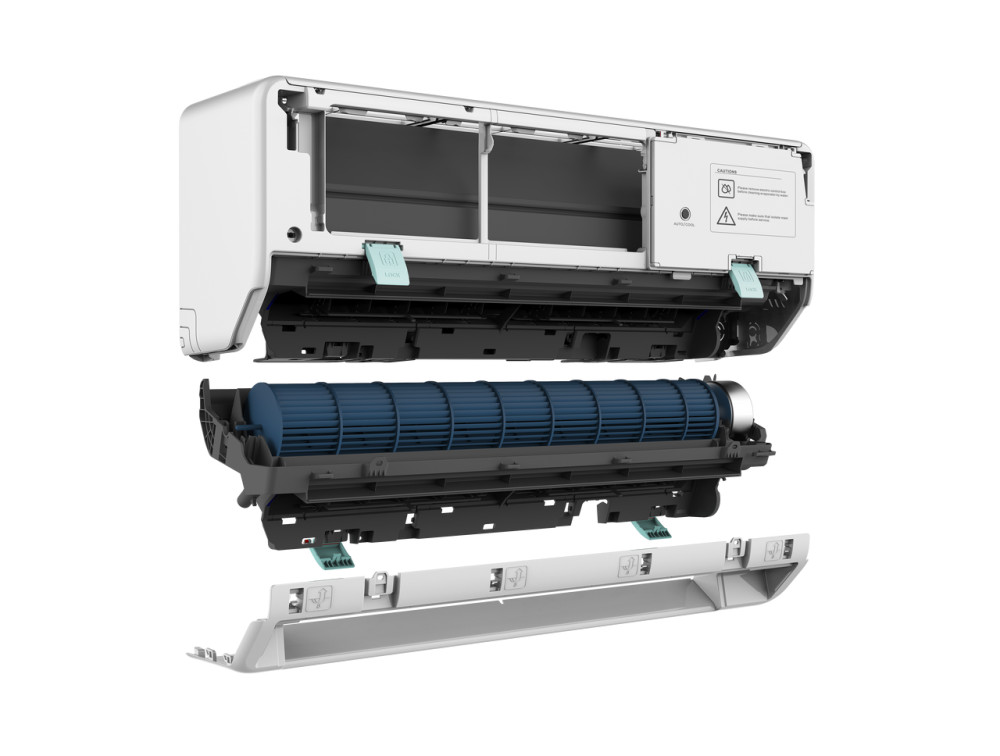

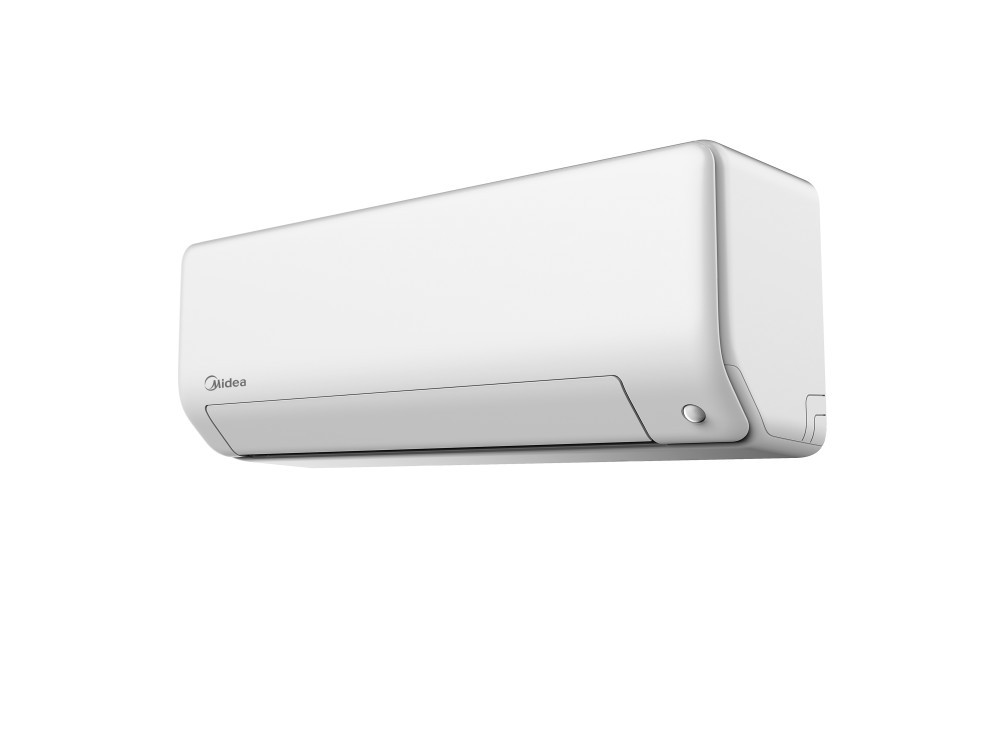

Indoor Unit (Each) – Midea DLFSHCH12XAK
-
Cooling/Heating Capacity: 12,000 BTU/hr (1 Ton)
-
Efficiency Ratings: SEER2 25.5 | EER2 14.0 | HSPF2-4 10.4 | COP ≈ 3.9
-
Airflow (H/M/L): 382 / 335 / 229 CFM
-
Noise (H/M/L): 38.0 / 33.5 / 23.5 dBA
-
Max Piping Length: 82 ft | Height Difference: 32.8 ft
-
Power Supply: 208/230 V | 1 Phase | 60 Hz | 15 A
-
Warranty: 7 Years Compressor / 5 Years Parts
