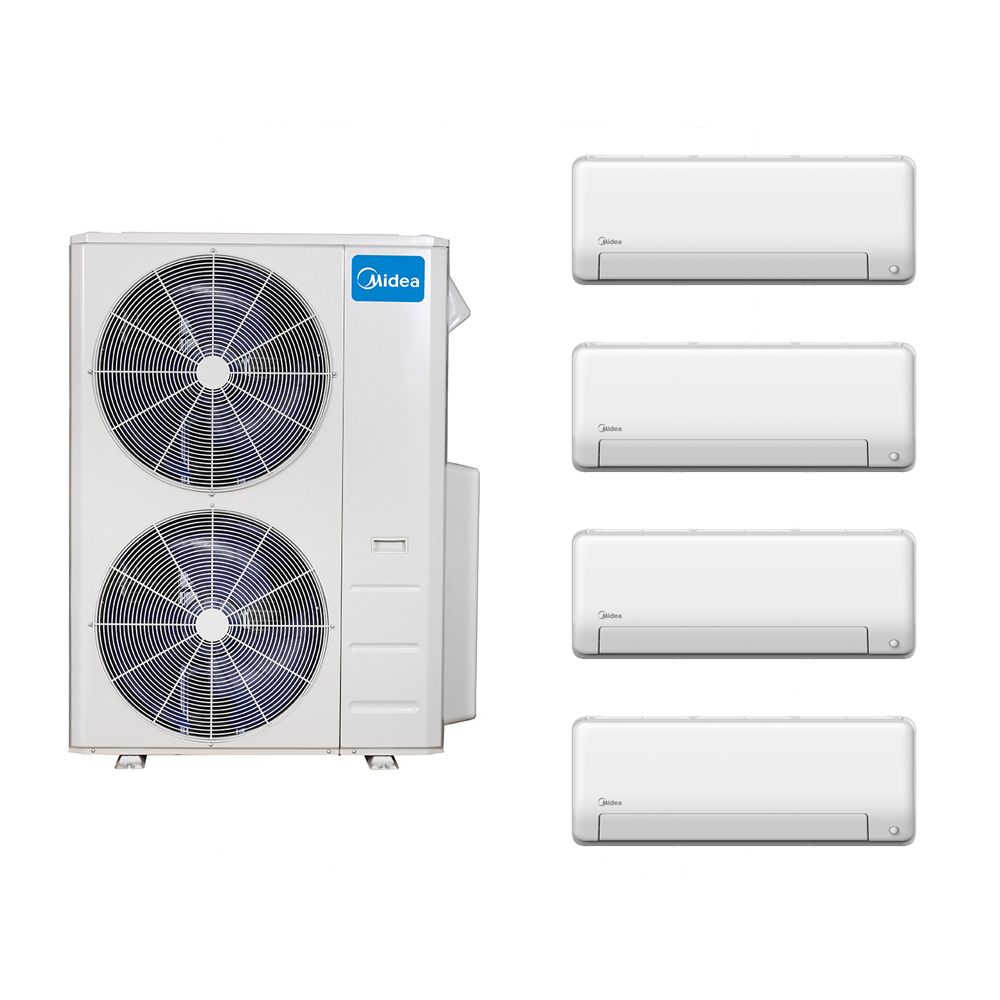

Experience year-round comfort and efficiency with this complete Midea 4-ton multi-zone ductless system. The package includes one 4-ton (48,000 BTU) Hyper-Heat outdoor unit paired with four 1-ton (12,000 BTU) Premier wall-mount indoor units — a perfect solution for zoned comfort in homes, offices, or light-commercial spaces. Each indoor unit operates independently, allowing you to tailor temperature settings for different rooms while reducing energy consumption.
Includes:
- (1) Midea DLCMHBH48EAK – Multi-Zone Hyper Heat Outdoor Unit (3 Ton)
- (4) Midea DLFSHCH12XAK – Premier Wall-Mount Indoor Units (1 Ton each)
This combination offers powerful heating and cooling performance, advanced inverter technology, whisper-quiet operation, and flexible installation options for maximum comfort and control.
Key Features
-
True Multi-Zone Flexibility: The 4-ton outdoor unit can support 2–5 indoor units, providing independent zoning for each area.
-
Hyper Heat Performance: Down to extreme temperatures - reliable heating even when outdoor temperatures plunge, thanks to enhanced cold-climate capability.
-
High Efficiency: Both outdoor and indoor units utilize inverter technology for reduced cycling, better partial-load performance, and lower utility costs.
-
Quiet Indoor Operation: Wall-mount indoor units deliver whisper-quiet airflow and low sound levels in living spaces.
-
Sleek, Space-Saving Design: 1-ton wall-mount units are compact and ideal for room-by-room comfort without bulky ductwork.
-
Flexible Installation: Long refrigerant line lengths and variable height differences accommodate complex layouts and retrofit scenarios.
-
Eco-friendly Refrigerant: Uses R-410A refrigerant, compatible with existing infrastructure while offering modern efficiency.
Specifications
Outdoor Unit – Midea DLCMHBH48EAK
-
Cooling Capacity: 48,000 BTU/hr (rated)
-
Heating Capacity: 48,000 BTU/hr (rated)
-
Operating Range: Heating down to –22 °F outdoor ambient
-
Efficiency Ratings: SEER2 23.4 | EER2 12.5 | HSPF2-4 8.7
-
Power Supply: 208/230 V | 1 Phase | 60 Hz
-
Noise Level: ≈ 64 dBA (outdoor)
-
Piping Length: Total 262 ft | Per Zone 115 ft
-
Height Difference: 49 ft maximum
-
Refrigerant Type: R410A
-
Warranty: 7 Years Compressor / 5 Years Parts
Click here to download the Product Submittal
Indoor Unit (Each) – Midea DLFSHCH12XAK
-
Cooling/Heating Capacity: 12,000 BTU/hr (1 Ton)
-
Efficiency Ratings: SEER2 25.5 | EER2 14.0 | HSPF2-4 10.4 | COP ≈ 3.9
-
Airflow (H/M/L): 382 / 335 / 229 CFM
-
Noise (H/M/L): 38.0 / 33.5 / 23.5 dBA
-
Max Piping Length: 82 ft | Height Difference: 32.8 ft
-
Power Supply: 208/230 V | 1 Phase | 60 Hz | 15 A
-
Warranty: 7 Years Compressor / 5 Years Parts
