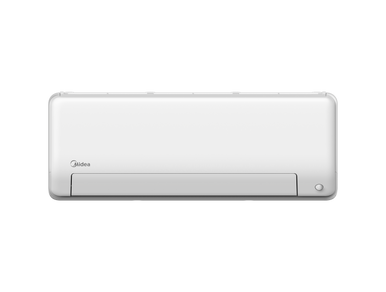

MSEHU-H18B-2A

Description

The Midea MSEHU-H18B-2A Multi Zone Indoor Unit is a high-performance, wall-mounted air handler designed for seamless integration with Midea’s multi-zone heat pump systems. With a cooling and heating capacity of 18,000 BTU, this unit is perfect for medium to large rooms, offering reliable comfort and energy-efficient performance.

Engineered with a sleek, modern profile, the MSEHU-H18B-2A blends effortlessly into residential or light commercial spaces while delivering whisper-quiet operation. Indoor sound levels range from just 20 dBA on low to 50 dBA on high, ensuring a peaceful indoor environment. The advanced fan system delivers airflow up to 636 CFM, providing fast and even temperature distribution.

This unit supports flexible installation with liquid line connections of 1/4″ and gas line connections of 1/2″, making it easy to pair with compatible outdoor multi-zone systems. With R454B refrigerant, it’s built for improved efficiency and lower environmental impact. Compact yet powerful, the Midea MSEHU-H18B-2A is an ideal solution for year-round comfort and dependable climate control.

Key Features

• 18,000 BTU cooling and heating capacity
• Wall-mounted design with modern, slim profile
• Ultra-quiet operation as low as 20 dBA
• Strong airflow up to 636 CFM for even distribution
• Compatible with Midea multi-zone systems
• Eco-friendly R454B refrigerant
• Wide operating range: cooling 60°F–90°F, heating 32°F–86°F

Specifications

• Capacity (Cooling/Heating): 18,000 BTU
• Airflow (H/M/L): 636 / 500 / 359 / 294 CFM
• Noise Levels (H/M/L): 50 / 45 / 38 / 32 / 20 dBA
• Power Supply: 208/230V, 1Ph, 60Hz
• Fan Motor: 30W, 1190 / 994 / 896 RPM
• Refrigerant Type: R454B
• Piping Connections: Liquid 1/4″ | Gas 1/2″ | Drain 5/8″
• Dimensions (W×D×H): 38″ × 9-3/8″ × 12-1/2″

Click here to download the Product Submittal
