DLFSCAH12XAK/DLCSRBH12AAK Package

Description

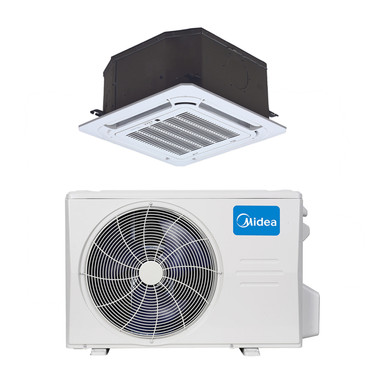

The Midea DLFSCAH12XAK / DLCSRBH12AAK Heat Pump Package is a 12,000 BTU round flow cassette mini-split heat pump system engineered for quiet, efficient, and even air distribution in residential or light commercial spaces. With a 22.3 SEER2 and 10.2 HSPF2 rating, this system delivers superior energy performance while maintaining comfort across a wide temperature range—from -22 °F heating to 122 °F cooling.

Its compact, ceiling-mounted indoor unit integrates seamlessly into any room layout, providing 360° airflow coverage and minimal visual impact. The system’s variable-speed inverter technology ensures precise temperature control, reduced power consumption, and reliable year-round operation.

Includes:

(1) Midea DLCSRBH12AAK 1 Ton Mini-Split Heat Pump

(1) Midea DLFSCAH12XAK 1-ton Slim Heat Pump Ceiling Cassette

Key Features

• Energy-Efficient Comfort:  Up to 25.5 SEER2 and 10.4 HSPF2 for outstanding energy savings.
• All-Season Performance: Operates effectively from -22°F to 122°F, providing dependable heating and cooling in any climate.
• Quiet Operation:  Indoor sound levels as low as 23.5 dBA and outdoor levels of just 56 dBA.
• Powerful Airflow:  Delivers up to 382 CFM indoors and 1,324 CFM outdoors for fast, even distribution.
• Compact Design:  Wall-mounted indoor unit measures only 31-1/4 in W × 8-7/8 in D × 11-5/8 in H.
• Flexible Installation:  Supports piping lengths up to 82 ft and height differences of 32.8 ft for versatile placement.
• Environmentally Friendly Refrigerant:  Uses R-410A with factory charge and flared connections for easy servicing.

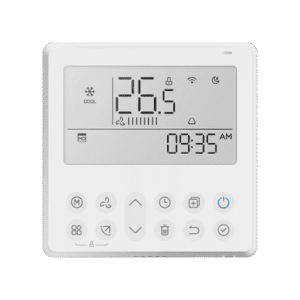

• Smart Controls Ready:  Compatible with modern thermostats and smart home integrations (sold separately).

Specifications

Outdoor Unit

• Capacity: 12,000 BTU Cooling / Heating
• Power Supply: 208/230V, 1Ph, 60Hz, 15A
• Refrigerant: R410A
• Outdoor Noise Level: 56 dBA
• Dimensions: 31 3/4″ W × 13″ D × 21 3/4″ H

Indoor Unit

• Cooling Capacity: 3,000 – 13,700 BTU/hr
• Heating Capacity: up to 15,300 BTU/hr
• EER2: 12.7 | COP: 3.26
• Power Supply: 208/230V, 1Ph, 60Hz
• Refrigerant: R410A
• Indoor Airflow (H/M/L): 335 / 282 / 241 CFM
• Indoor Noise Level (H/M/L): 40.5 / 35.5 / 31.5 dBA
• Max Piping Length: 82 ft
• Max Height Difference: 32.8 ft

Click here to download the Product Submittal
