DLFSHCH18XAK

Description

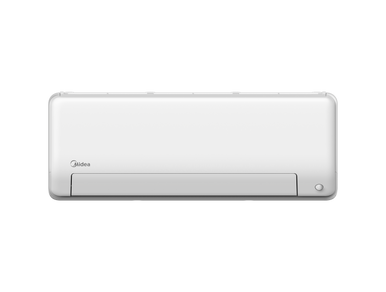

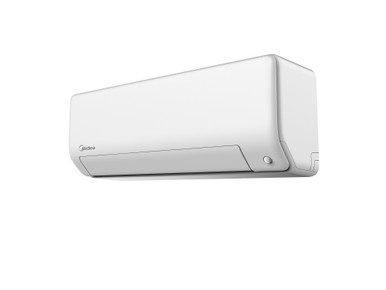

The Midea DLFSHCH18XAK Mini Split 25SEER2 Series Air Handler delivers exceptional year-round comfort and energy efficiency in a compact 1-ton system. With a rated cooling and heating capacity of 18,000 BTU/hr, this wall-mounted air handler is an ideal solution for bedrooms, offices, and small living spaces.

Built for performance, it achieves an impressive SEER2 21.5 and HSPF2-4 11.3, helping reduce utility bills while maintaining consistent indoor temperatures. The system delivers reliable heating even in extreme cold, operating effectively at outdoor temperatures as low as -22°F and cooling up to 122°F.

Quiet operation makes the DLFSHCH18XAK perfect for comfort-sensitive environments, with indoor sound levels as low as 24.0 dBA. Installation is highly flexible with a maximum piping length of 98.4 ft and a vertical rise capability of 65.6 ft, making it adaptable for different layouts. Featuring advanced dehumidification, R410A refrigerant, and a durable rotary compressor, this mini split air handler ensures dependable, long-lasting performance.

Key Features

• 1.5 Ton / 18,000 BTU cooling and heating capacity
• High efficiency with SEER2 21.5 and EER2 12.5
• Reliable heating operation down to -22°F
• Whisper-quiet indoor sound as low as 24.0 dBA
• Flexible installation with 98.4 ft max piping length
• Compact, wall-mounted design for versatile applications
• Advanced dehumidification for improved comfort

Specifications

• Cooling Capacity (Rated): 18,000 BTU/hr
• Heating Capacity (Min/Max): 15,100 – 19,500 BTU/hr
• SEER2 / EER2: 21.5 / 12.5
• HSPF2-4: 11.3 | COP: 3.1
• Power Supply: 208/230V, 1Ph, 60Hz, 20A
• Indoor Airflow (H/M/L): 635 / 524 / 376 CFM
• Indoor Noise Level (H/M/L): 46 / 42 / 24 dBA
• Max Piping Length: 98.4 ft | Height Difference: 65.6 ft

Click here to download the Product Submittal
